Data-Centric Threat Analysis Framework for IoT and OT Systems

Overview

Tributech recently released a framework providing a structured approach for evaluating and mitigating security risks across Internet of Things (IoT) and Operational Technology (OT) systems, with a focus on safeguarding the integrity, authenticity, and accountability of data. It highlights how data notarization, a cryptographic method for ensuring tamper-proof data, can address gaps left by traditional security controls.

Aimed at organizations leveraging IoT/OT data for operations, analytics, and AI, the framework demonstrates how data-centric security principles reduce threats such as spoofing, tampering, and repudiation, while also supporting regulatory compliance with standards like EU Cyber Resilience Act (CRA), EU AI Act, IEC 62443, NIST 800-82 and NIST 800-213.

In this blog post, we offer a preview of the framework’s core principles, practical guidance, and implementation tools.

Keep reading to explore how you can future-proof your data security strategy.

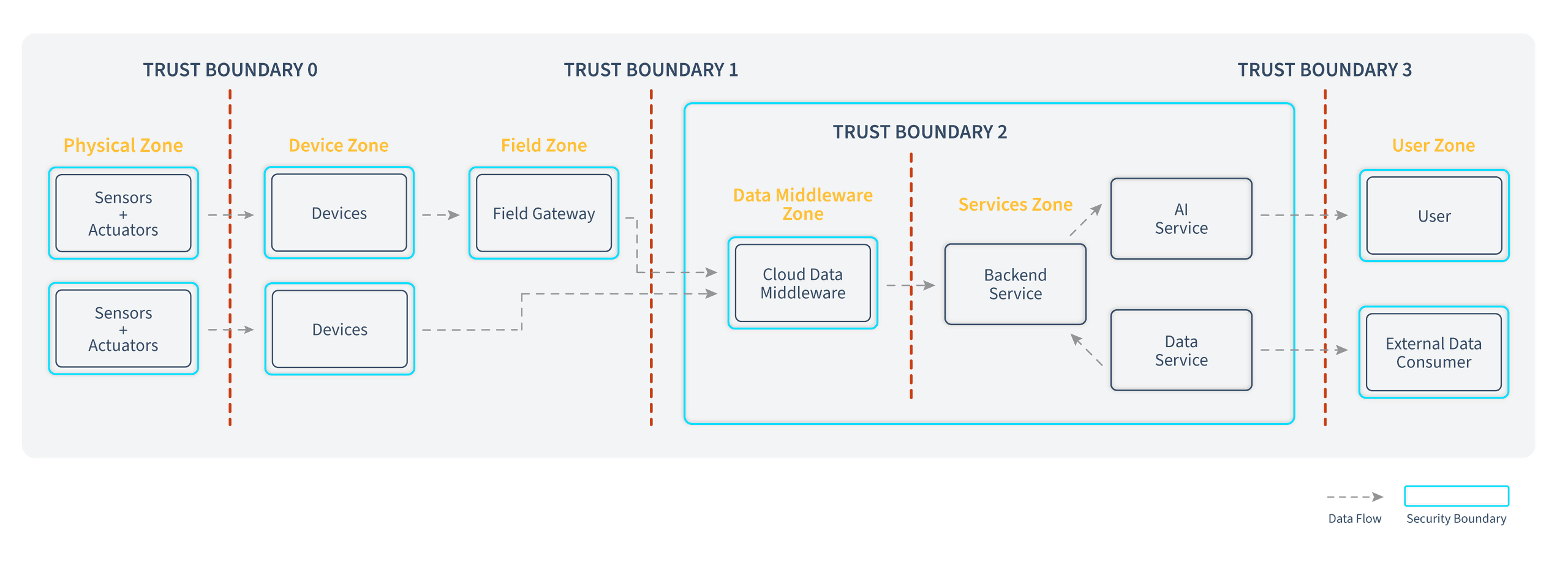

IoT / OT Reference Architecture

The architecture used in the analysis is designed to manage the scale and complexity of IoT/OT ecosystems by segmenting responsibilities into distinct zones, each with a specific role in data collection, processing, and consumption. These zones create logical separation for data flows from sensors to business applications, minimizing exposure to cyber threats.

• Physical Zone: Sensors and actuators gather environmental data (e.g., pressure, vibration). Physical security is excluded from this analysis.

• Device Zone: Devices collect and transmit data directly or via gateways.

• Field Zone: Field gateways aggregate and preprocess data before forwarding it to cloud middleware.

• Data Middleware Zone: Middleware routes data to backend systems or AI engines.

• Services Zone: Business logic, analytics, and AI models operate on processed data.

• User Zone: End-users and third parties access verified insights via APIs or dashboards.

These zones are separated by trust boundaries, echoing the Purdue Model, ensuring layered defense and reducing the blast radius of security incidents. Despite these controls, the framework identifies that gaps still remain in ensuring end-to-end data integrity and authenticity as data crosses these boundaries.

Data Tampering & Poisoning - The Biggest Risk for Data-Enabled Business Models

As businesses increasingly rely on data to drive operations, decisions, and revenue, the integrity of that data becomes mission-critical. Using the STRIDE threat modeling methodology, our framework identifies key cybersecurity risks, specifically spoofing, tampering, and repudiation, that can compromise the integrity, authenticity, and accountability of data-driven systems.

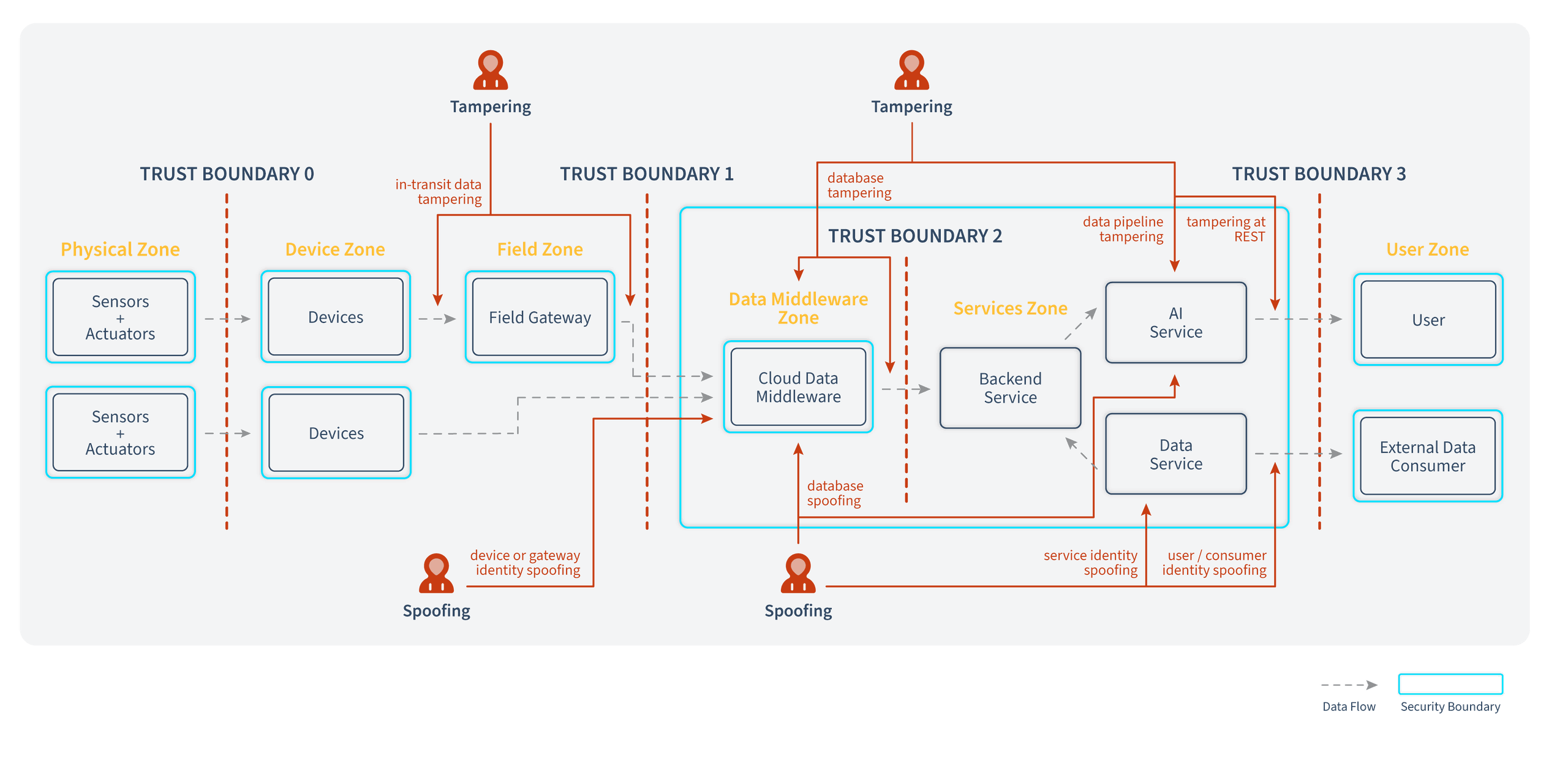

These threats are relevant across the entire data lifecycle, from sensor to cloud and pose risks not only to system functionality but also to regulatory compliance, safety, and strategic decision-making. The architecture below maps out key attack vectors related to this threat:

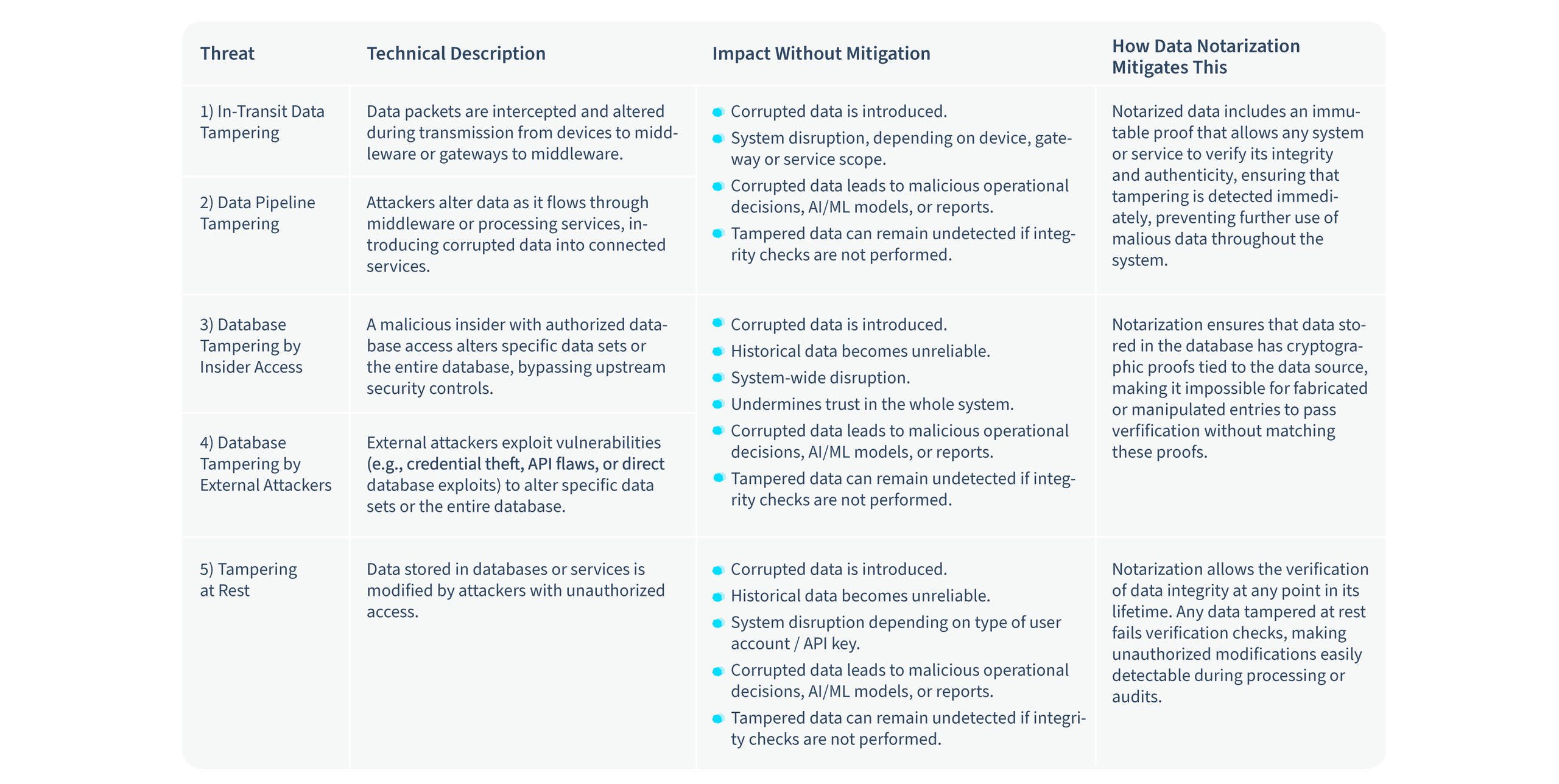

Among the identified threats, tampering is one of the most critical. It involves the unauthorized alteration of data during transmission, processing, or storage. Tampered data can lead to faulty analytics, misinformed automation, or a breakdown of trust in digital services. As one example of how the framework addresses concrete threats, the following table outlines several tampering scenarios, their potential impact, and how data notarization can mitigate these risks:

How to Use Data Notarization to Mitigate Risk

Our framework introduces a practical, data-centric approach to mitigating core threats like spoofing, tampering, and repudiation, through data notarization. Rather than securing systems around the data, notarization embeds verifiable trust into the data itself by generating cryptographic proofs (e.g., signed hashes) at the point of creation. These proofs remain intact across systems, networks, and throughout the data’s lifecycle.

Unlike traditional security methods that focus on perimeter defense or encryption, notarization ensures authenticity and integrity without altering the data. This fills critical gaps in today’s architectures, especially where data is exchanged across trust boundaries or processed in complex, distributed environments. By anchoring trust directly to the data, notarization simplifies security architecture, reduces operational complexity, and enables independent verification by any stakeholder, without relying on third parties.

Key benefits explored in the framework:

• Notarization vs. Encryption: Encryption hides data; notarizationauthenticates it without changing it.

• Integrity & Authenticity: Embedded cryptographic proofs ensure data hasn't been tampered with and can be trusted.

• Cross-Layer Security: Verification is independent of the system/network layer, ensuring end-to-end trust.

• Lifecycle Coverage: Validates data at any point—creation, transit, storage, or processing.

• Independent Verification: No need for third-party validation; any stakeholder can verify data integrity directly.

• Defense Against STRIDE Threats: Detect spoofed inputs, prevent silent tampering, and enable non-repudiation.

The full framework breaks down how data notarization directly mitigates these risks and how it can be integrated into existing systems with minimal friction.

How Tributech’s Framework Helps You Secure Your Data

This comprehensive framework goes beyond surface-level threat identification. It provides a structured, actionable guide for securing data across complex, distributed systems, especially where IoT, OT, and IT domains intersect. Whether you're designing a new architecture or reinforcing an existing one, the framework helps you recognize critical gaps in conventional security strategies and introduces data notarization as a foundational layer of trust. Through real-world examples, threat models, and architecture diagrams, it equips teams with the tools to evaluate, prioritize, and mitigate the most pressing risks to data-driven operations.

• How to apply STRIDE threat modeling to map spoofing, tampering, and repudiation risks across your IoT, OT and IT architecture

• A comparison of common security solutions, such as network security, encryption, and anomaly detection, with data notarization, highlighting the gaps that notarization addresses

• How to quantify business impact, including real-world savings of up to $19M/year through reduced downtime, AI stability, and data integrity

• A step-by-step approach to launching your data assurance program, prioritizing threats, and phasing in notarization

• How to integrate Tributech’s platform—with built-in notarization, digital twins, and secure APIs—for scalable protection across IoT/OT environments

Download the Full Framework

Want to see how your organization can reduce data risk, cut costs, and build a resilient IoT/OT security posture? Then download the full Data-Centric Threat Analysis Framework for IoT and OT Systems here.
